【产品介绍】：

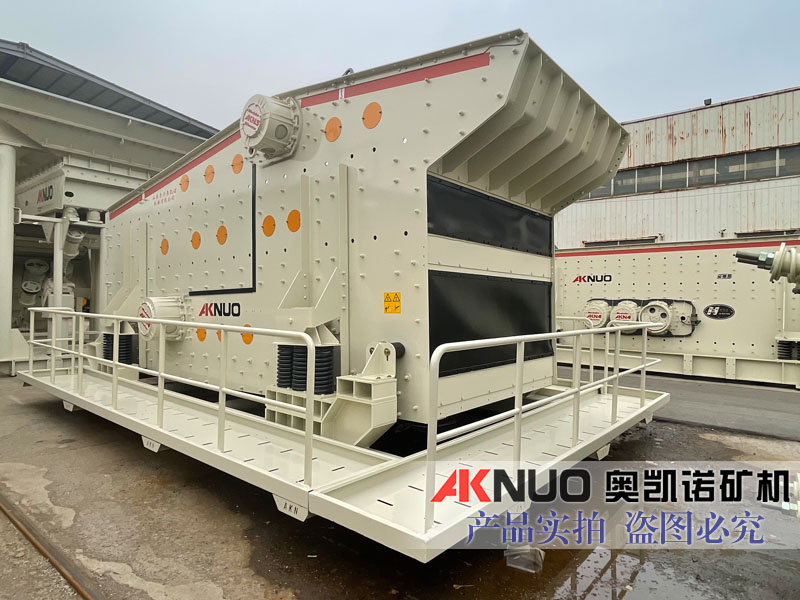

The dual axis self synchronous elliptical horizontal vibrating screen, also known as the high and low axis horizontal vibrating screen, is a heavy-duty mining screen that has two self synchronous vibrators to achieve elliptical motion. The structure is simple and reliable, and maintenance is convenient. It can adjust the speed and amplitude of rubber shock absorbers for different purposes. The parking is stable, safe and reliable, and there is no noise. The modular vibrator is easy to replace and repair, and the side plate is riveted with ring groove riveting needles without welding, Compared with traditional vibrating screens of the same specification, its high-energy elliptical motion can increase production by 25% due to its high fatigue stress safety. Under harsh screening conditions, such as wet screening or screening of viscous and solid waste materials, it has the required strong screening effect, electrically driven, optional centralized lubrication, and optional rack.
Double axis self synchronous vibrating screen Technical parameters:
|
机器参数 |
宽x长 |
层数 |
功率（KW） |
MV激振器 |
生产能力（tph） |
上层最大筛孔（mm） |
|
1860 |
1.8x6 |
2 |
15+15 |
MV2+ MV2 |
150-300 |
75 |
|
1860 |
1.8x6 |
3 |
22+22 |
MV3+ MV3 |
150-300 |
75 |
|
2460 |
2.4x6 |
2 |
22+22 |
MV3+ MV3 |
250-500 |
75 |
|
2460 |
2.4x6 |
3 |
22+30 |
MV3+ MV4 |
250-500 |
75 |
|
2672 |
2.6x7.2 |
2 |
22+30 |
MV3+ MV4 |
400-800 |
75 |
|
2672 |
2.6x7.2 |
3 |
22+30 |
MV4+ MV4 |
400-800 |
75 |
|
3072 |
3.0x7.2 |
2 |
2x30+30 |
2MV4+ MV4 |
500-1000 |
75 |
|
3072 |
3.0x7.2 |
3 |
2x30+30 |
2MV4+ MV4 |
500-1000 |
75 |
