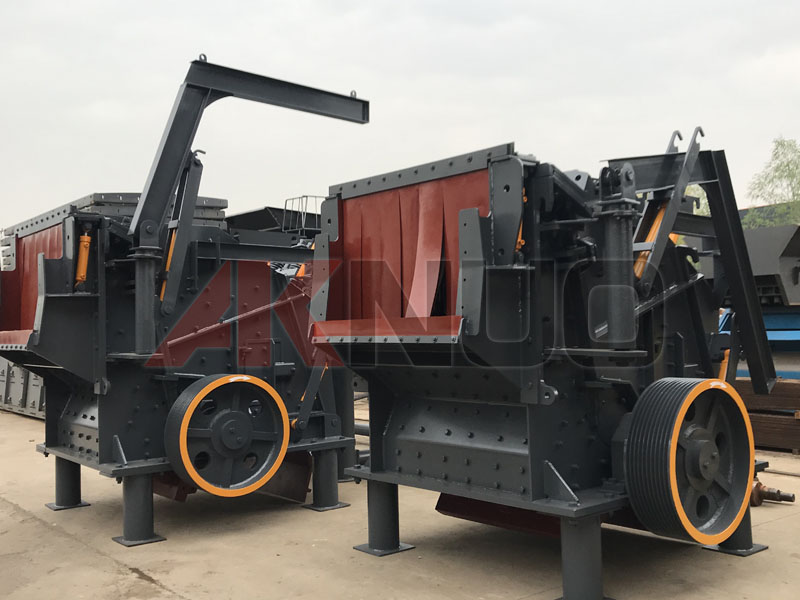

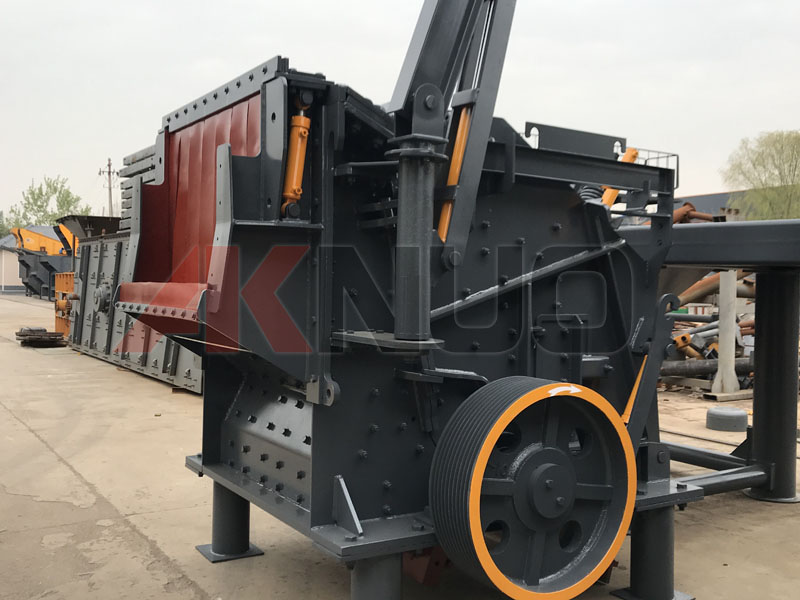

Impact crusher is the most common equipment of the stone crushing production line , adopting the latest producing technology, features many advantages: special structural design,cubic shaped desired products, dealing with the material with the side length 500mm, not more than 350Mpa anti-pressure strength,Impact Crusher can be widely used in crushing the coarse, midium, and fine material(E,g.granite,limestone,concrete).

Working Principle of Impact Crusher:
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the Impact crusher.
impact crusher of Features:
High reduction rotors for all minerals and aggregates
Lesser fine compared to hammer mill.
Cubically shaped product
